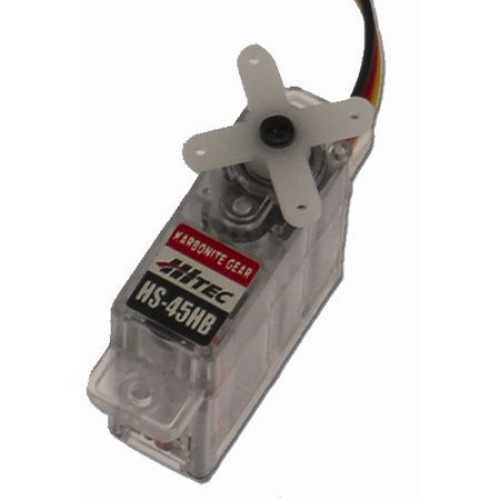

HS-45HB Servo Premium Feather, 4.8V 1.0kg/cm 0.14 sec, 8g, Product Description Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.
Specifications Motor Type: 3 Pole Bearing Type: Top Ball Bearing Speed (4.8V/6.0V): 0.14 / 0.12 sec @ 60 deg. Torque oz./in. (4.8V/6.0V): 14 / 17 Torque kg./cm. (4.8V/6.0V): 1.0 / 1.2 Size in Inches: 0.92 x 0.38 x 0.88 Size in Millimeters: 23.37 x 9.65 x 22.35 Weight ounces: 0.28 Weight grams: 7.94
Advanced Servo Specifications Control System: +Pulse Width Control 1500usec Neutral Operating Voltage Range: 4.8V - 6V Operating Temperature Range: -20°C to +60°C (-4°F to +140°F) Idle Current: 8mA No Load Running Current (4.8V/6.0V): 100mA/60° Stall Current (4.8V/6.0V): 440mA Dead Band Width: 5usec Potentiometer Type: 2 Slider/Direct Drive Connector Wire Length: 250mm (9.84 in) Connector Wire Gauge: 28AWG
Hitec HS-45HB Servo Premium 8g Feather 1.0kg
Brand: Hitec
Product Code: HS-45HB
Availability: In Stock
