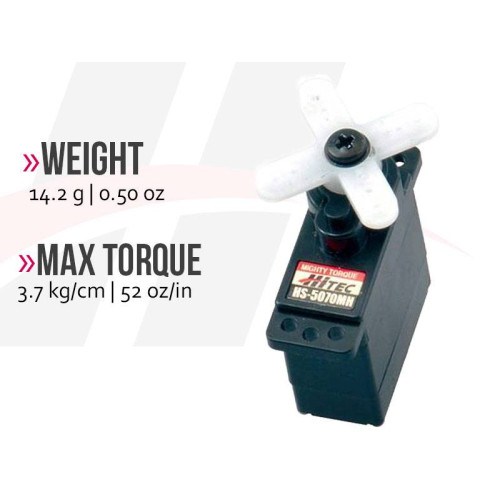

HS-5070MH Servo Ultra Torque, Metal Gear Feather 3.7kg, 0.12sec @7.4v 14.2g 23.6x11.6x28.1mm by Hitec
Product Description
Our new strong and speedy digital HS-5070MH possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. The programmable HS-5070MH delivers an impressive 53 oz.-in. of torque at 7.4 volts. Fast, forceful, fantastic! We Are Hitec!
Programmable Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Accessories
- Metal Gear Set
- Applicable Horns
HS-5070MH Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.14 ~ 0.12 |
| Maximum Torque Range oz. / in. | 42 ~ 53 |
| Maximum Torque Range kg. / cm. | 3.0 ~ 3.7 |
| Current Draw at Idle | 3 mA |
| No Load Operating Current Draw | 240 mA |
| Stall Current Draw | 1,300 mA |
| Dead Band Width | 2 µs |
| Physical Specifications | |
| Dimensions (Inches) | 0.92 x 0.45 x 1.14 |
| Dimensions (Metric) | 23.6 x 11.6 x 28.1 |
| Weight (Ounces) | 0.50 |
| Weight (Gram) | 14.2 |
| Circuit Type | G1 Programable Digital |
| Motor Type | 3 Pole Metal Brush Neodymium |
| Gear Material | Metal |
| Bearing Type | Top Ball Bearing |
| Output Shaft (type / Ømm) | Micro 23 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 28 / 20 |
| Radio Control Applications | |
| Parkflyer | < 65 oz. |
| Sport Plane | 36 - 41 oz. |
| Sailplane | <2 meter / DLG |
| 3D Performance | N / A |
| Scale | N / A |
| Electric Helicopter | 500-750mm |
| Gas Helicopter | 30-39 Class |
| On Road | 1/16th |
| Monster Truck | N / A |
| Buggies | 1/16th |
| Truggies | N / A |
| Short Course / Truck | 1/8th |
| Crawlers | N / A |
| Sail Boat | N / A |
| Power Boat | 1/16th |
Hitec HS-5070MH Servo Ultra Torque Metal Gear Feather 3.7kg
- Brand: Hitec
- Product Code: HS-5070MH
- Availability:
-
$82.00
