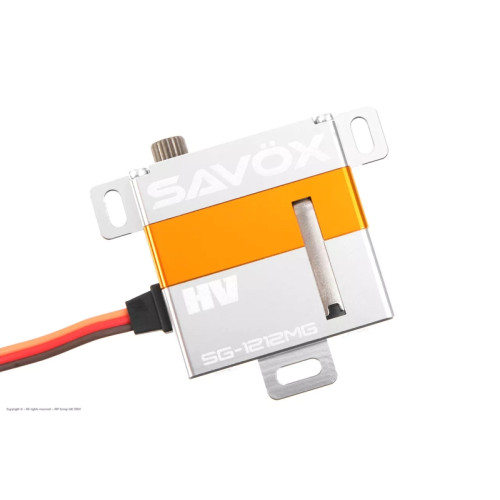

Servo - SG-1212MG - Digital - High Voltage - Coreless Motor - Metal Gear

The Savox SG-1212MG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. The ultra slim profile is designed for thin glider wings.

Features:
• Torque @ 6V - 4.0kg
• Torque @ 7.4V - 5.0kg
• Torque @ 8.4V - 6.0kg
• Speed @ 6V - .14sec/60 deg
• Speed @ 7.4V - .10sec/60 deg
• Speed @ 8.4V - .09sec/60 deg



General Info

Item Nr

SG-1212MG

Barcode

4710006993592,00

Brand

Savöx

Servo - Specs

Speed 60°/Sec @ 6.0V

0,14

Speed 60°/Sec @ 7.4V

0,10

Speed 60°/Sec @ 8.4V

0,09

Torque kg/cm @ 6.0V

4,00

Torque kg/cm @ 7.4V

5,00

Torque kg/cm @ 8.4V

6,00

Servo - Dimensions

Servo Type

Low Profile Servo

Spline Type

21T Spline

Length (mm)

30,00

Width (mm)

30,00

Height (mm)

10,00

Weight (g)

27,00

Servo - Technology

Technology

Digital HV

Operating Voltage (V)

6.0V - 8.4V

Servo Motor

Coreless Motor

Servo Protection

Water - Dust Resistant

Servo Positioning

VR Potentiometer - Direct Drive

Servo Gears

Metal Gears

Servo Case

Aluminium Case

Connector

JR Universal + Colored Lead
